The 3 tiers of software architecture
How Drobox and other tech companies build a 3 tier architecture stack
The landscape of software architecture has witnessed significant evolution over the years, and at the heart of many contemporary designs lies the robust foundation of the 3-tier architecture. This modular client-server architecture divides applications into three logical and functional tiers: the presentation tier, the application tier, and the data tier. In this article, we'll delve into the intricacies of the 3-tier architecture, exploring its components, benefits, and its relevance in today's dynamic software development environment.
Understanding Three Tier Arcitecture
Presentation Tier
At the top of the hierarchy is the presentation tier, responsible for the user interface and overall user experience. It can manifest as a web browser interface, desktop application, or a graphical user interface (GUI). Developed using HTML5, CSS, and JavaScript, this tier engages users and facilitates interaction with the application.
Application Tier
Often referred to as the logic tier, the application tier serves as the heart of the application. It processes information collected from the presentation tier, applying business logic and interacting with the data tier. Written in languages like Python, Java, Perl, PHP, or Ruby, this tier communicates with the data tier through API calls, orchestrating the core functions of the application.
Data Tier
The foundation of the 3-tier architecture, the data tier, is where information processed by the application is stored and managed. This tier, also known as the database tier, utilizes systems like PostgreSQL, MySQL, MongoDB, or others, ensuring efficient data storage and retrieval. Crucially, communication between the presentation tier and data tier occurs exclusively through the application tier, enhancing security and control.
Benefits of a 3-Tier App Architecture
Logical and Physical Separation:
Logical separation allows different development teams to work on each tier simultaneously, accelerating the development process.
Physical separation enables each tier to run on its dedicated infrastructure, facilitating scalability and customization without affecting other tiers.
Faster Development:
Simultaneous development of each tier by different teams expedites time-to-market.
Utilization of the latest languages and tools for each tier enhances the overall application quality.
Improved Scalability:
Any tier can be scaled independently, providing flexibility and efficiency in resource allocation.
Enhanced scalability contributes to adapting the application to evolving user demands and increased workloads.
Enhanced Reliability:
Faults or outages in one tier are less likely to impact other tiers, ensuring consistent application performance.
Improved reliability contributes to a positive user experience and overall system dependability.
Heightened Security:
The application tier acts as an internal firewall, preventing direct communication between the presentation and data tiers.
Security measures, such as preventing SQL injections, are enforced through the well-designed application tier.
Adapting to Modernization
While three-tier architecture has been the cornerstone of client-server applications for decades, its adaptability is evident in the era of cloud-native technologies. Modernization efforts, leveraging containers and microservices, are breathing new life into traditional three-tier applications. As organizations evolve, they might transition from an initial organization within tiers to a cross-tier team design, aligning more closely with customer needs.
3-Tier Architecture at Dropbox

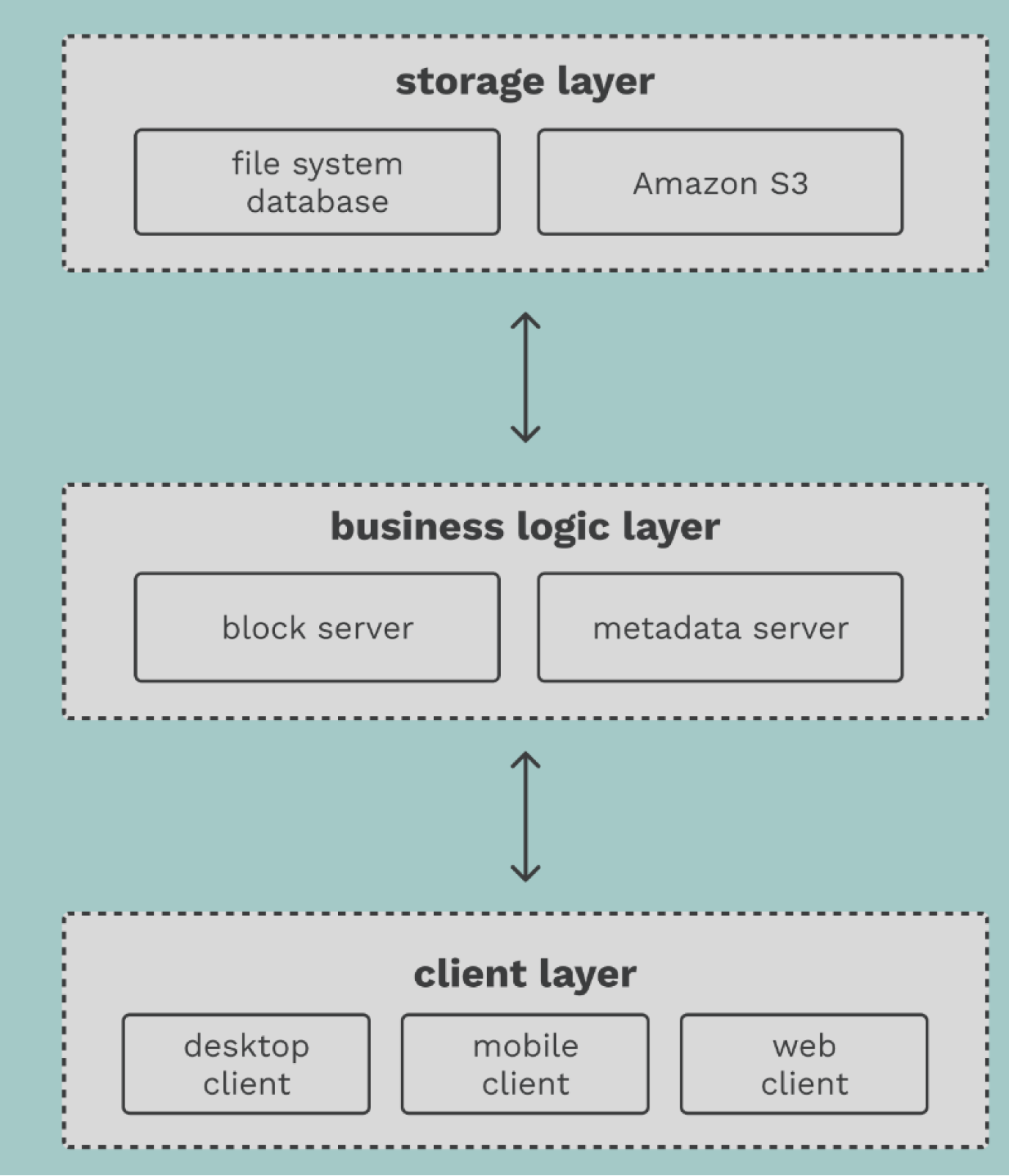

In the realm of cloud-based file storage and collaboration, Dropbox has played a pioneering role. The company's journey through the intricacies of 3-tier architecture provides insights into its adaptability and scalability. As mentioned by Dropbox, the 3-tier architecture forms the foundation of most Software as a Service (SaaS) designs. It comprises a client layer, a business logic layer on the server side, and a storage layer.
Engineering teams at Dropbox initially embraced organization within tiers, optimizing for engineering efficiency. However, recognizing the importance of customer-centric focus and alignment across teams, especially those closest to the customers, Dropbox gradually transitioned to a cross-tier team design. This shift aimed to enhance collaboration, foster a unified approach to customer needs, and streamline development processes.
Observations from Dropbox suggest that the decision to organize within or across tiers is contingent on the company's stage and lifecycle. Smaller companies often begin organized by tier, optimizing for initial efficiency. Yet, as companies grow and face evolving challenges, the pendulum might swing back and forth between organizational structures to address immediate problem needs. Whether dealing with technical debt within a specific tier or ensuring alignment with customer goals, the adaptability of 3-tier architecture allows organizations like Dropbox to find optimal solutions at different stages of their journey.
The 3-tier architecture stands as a testament to the enduring principles of logical separation and scalability in software development. Its benefits, ranging from faster development to heightened security, make it a pivotal choice for architects navigating the complexities of modern applications. As technology continues to advance, the 3-tier architecture remains not just a historical relic but a dynamic framework shaping the future of software development.
